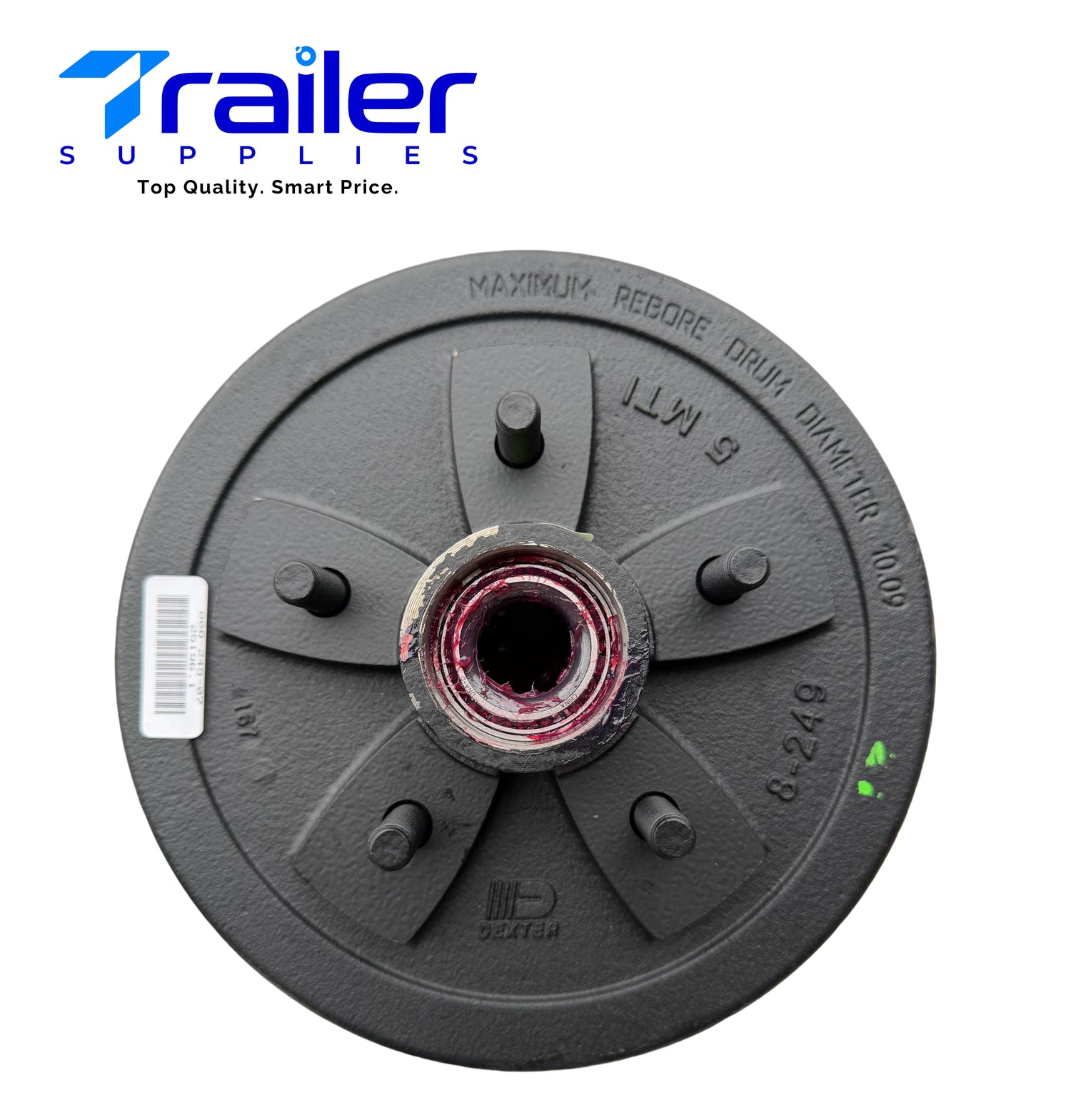

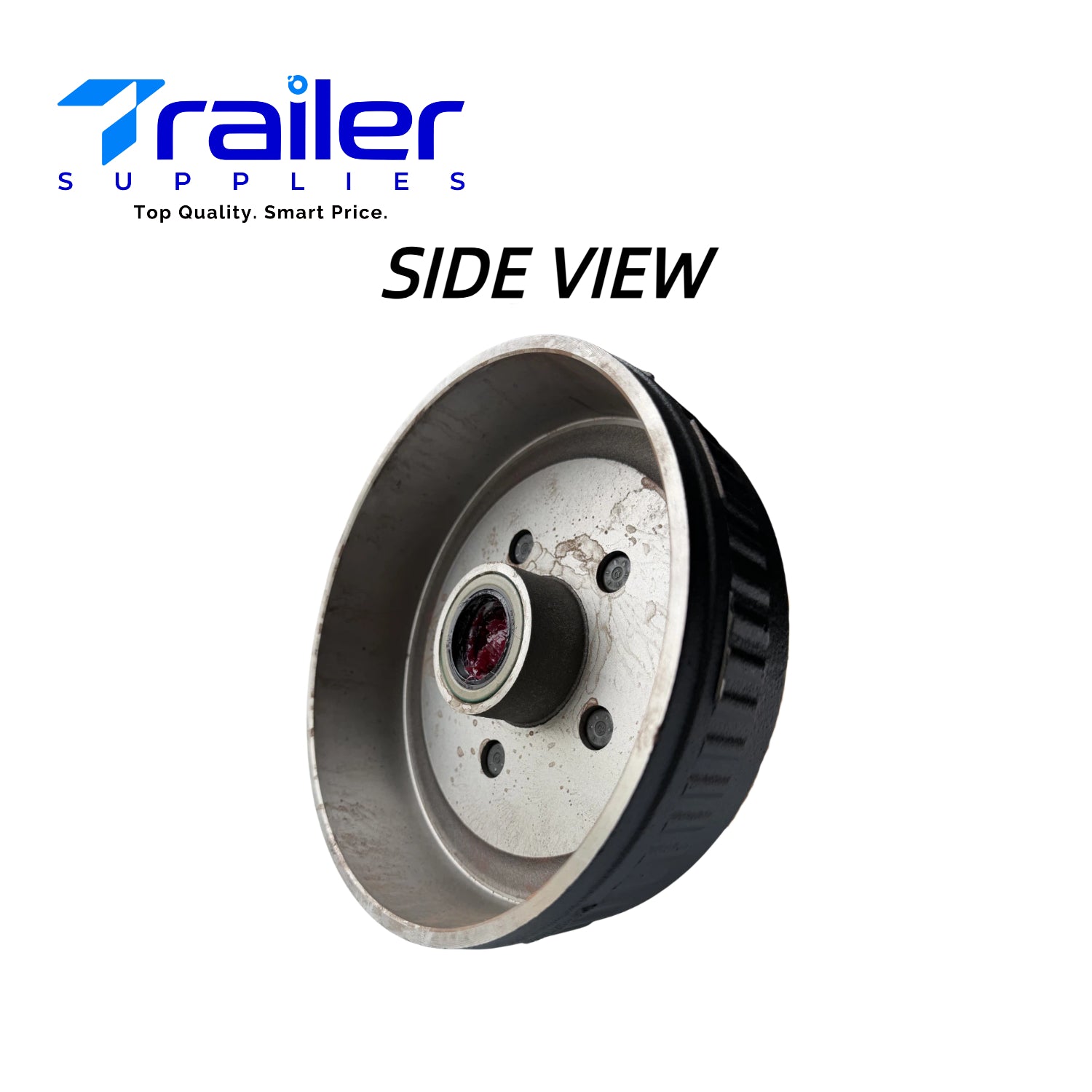

DEXTER Pre-Greased Trailer Hub and Drum Assembly Kit - 5 on 5" Bolt Pattern for 3.5K Axles, 1/2"Studs,#84 Spindle, 1.718" Seal,(Model: K08-249-1G)

Specifications

Technical Dimensions

• Axle capacity: 3,500 lb trailer E-Z Lube axles

• Spindle Type: #84 spindles

• Drum dimensions: 10" diameter x 2-1/2" wide

• Bolt pattern: 5 on 5"

• Wheel bolt diameter: 1/2"

• Weight capacity: 1,750 lbs

• Wheel size: 13" to 15"

• Grease cap flange diameter: .198"

Build & Functions

• Compatible brake types: Electric and hydraulic drum brakes

• Works with: 10" brake assembly

• Bearing, Race, and Seal information:

  • Inner bearing: L68149 (1.378" inner diameter)

  • Outer bearing: L44649 (1.063" inner diameter)

  • Inner race: L68111

  • Outer race: L44610

  • Grease seal: 58846

  • Grease seal inner diameter: 1.719"

  • Grease seal outer diameter: 2.565"

Part Identification

• BRAND: DEXTER

• MANUFACTURE PART NUMBER: K08-249-1G

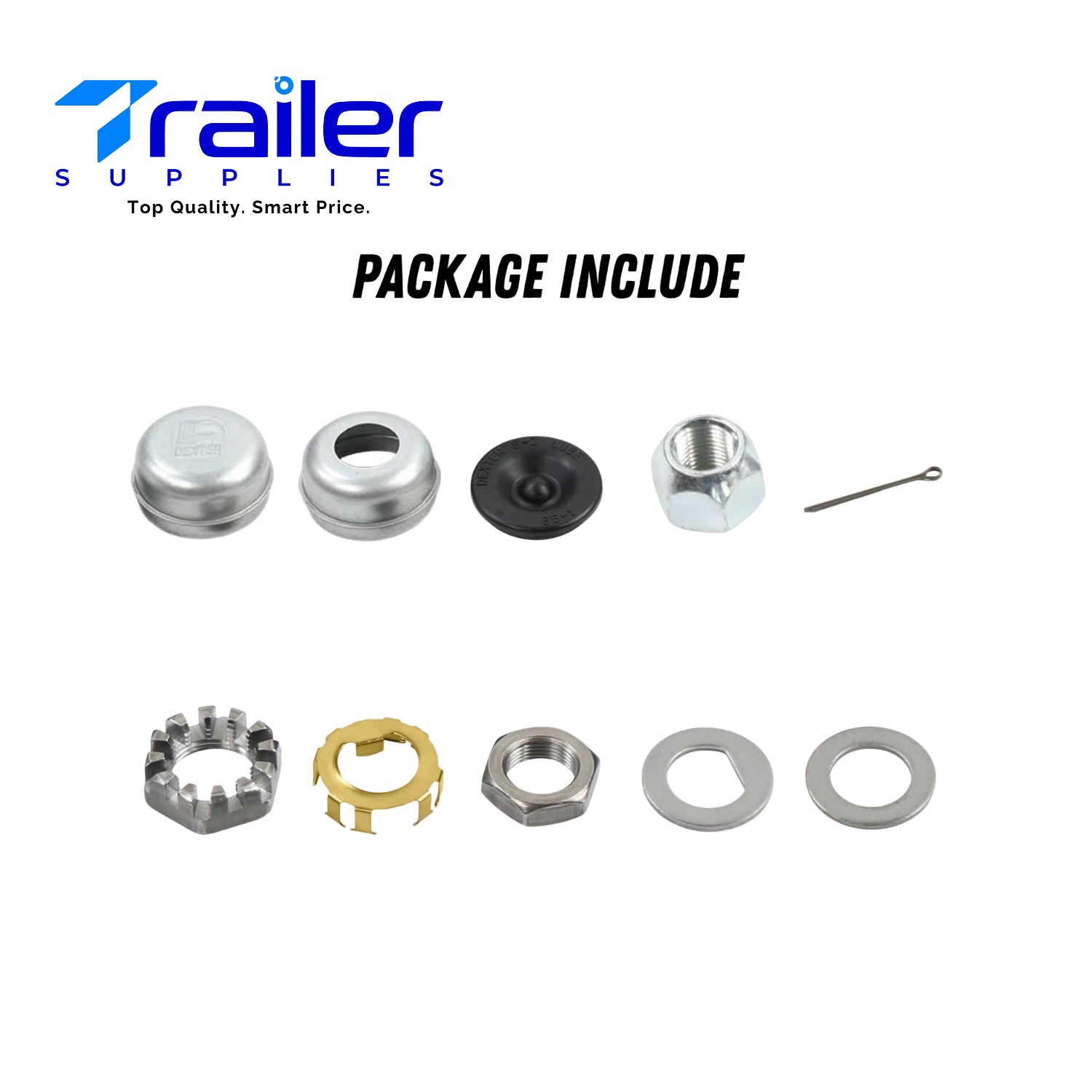

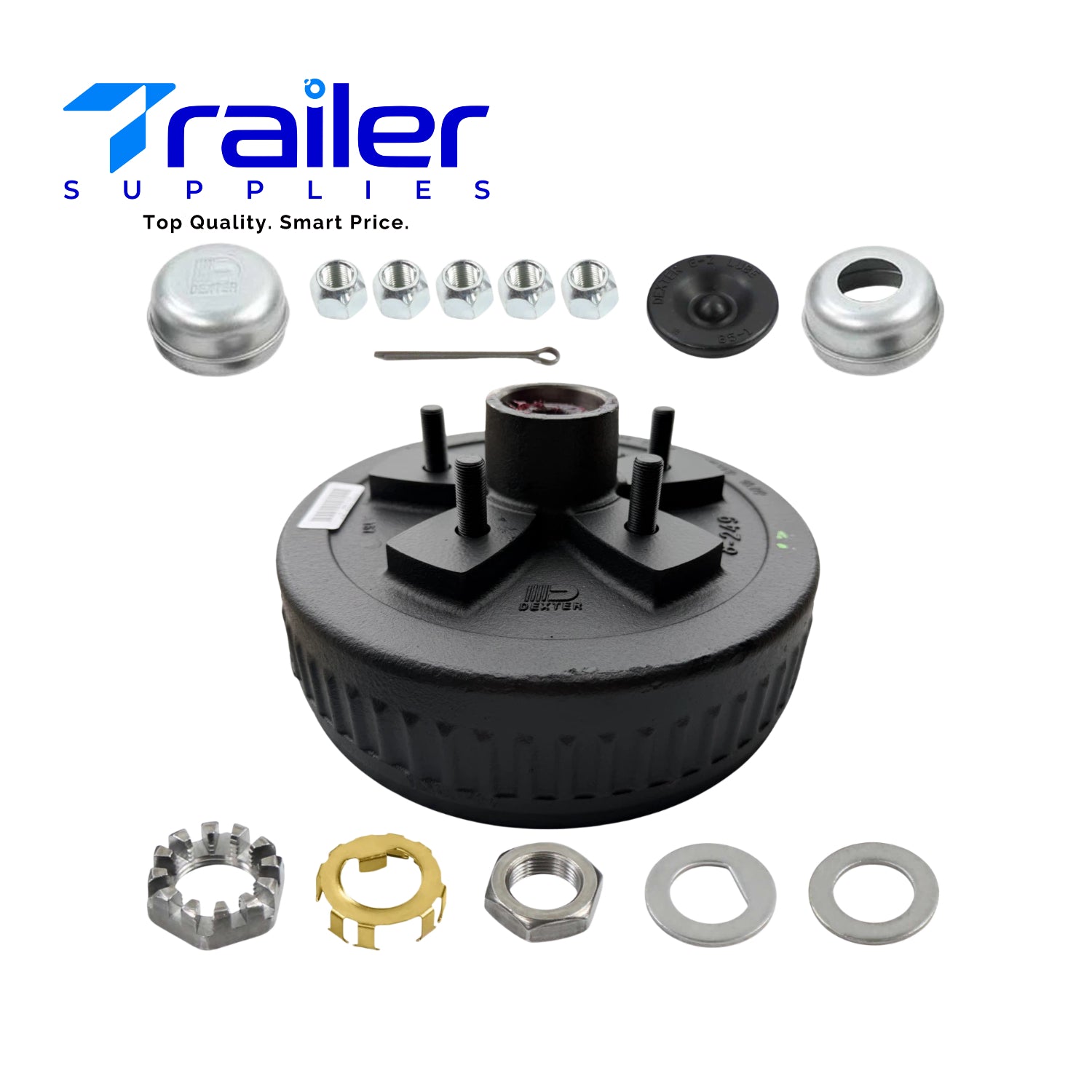

What's Included

• 1 x Hub & Drum, 3.5K, Cupped & Studded (008-249-07)

• 1 x Bearing Cone L44649 (031-031-02)

• 1 x Bearing Cone L68149 (031-033-02)

• 1 x Seal, Grease 1.72" (010-019-00)

• 5 x Nut, Cone 60-deg (006-080-00)

• 1 x Grease Cap (021-003-00)

• 1 x Grease Cap (021-041-01)

• 1 x Rubber Plug (085-001-00)

• 1 x Nut, Retainer (006-190-00)

• 1 x Nut, Hex (006-191-00)

• 1 x Nut, Slotted (006-176-00)

• 1 x Washer, "D" (005-023-00)

• 1 x Washer (005-027-00)

• 1 x Cotter Pin (019-002-00)

Streamline your running gear maintenance and eliminate the mess of manual packing with this premium shop-grade pre-greased trailer hub and drum assembly kit. Expertly engineered as a comprehensive, time-saving replacement solution for standard 3,500 lbs trailer braking axles, this all-in-one unit arrives pre-lubricated with high-quality automotive grease. Built specifically for assemblies configured with a 5 on 5-inch wheel bolt circle, the precision-cast drum cavity features pre-installed inner and outer races. The system integrates an industry-standard L68149 inner bearing cone and an L44649 outer bearing cone to deliver a dependable, high-speed friction reduction framework. To protect your internal braking components, the integrated 1.718 inch (1.72") double-lip grease seal provides robust lubricant retention while locking out highway grime and external moisture. Fully optimized for instant compatibility with standard electric and hydraulic drum brakes, this mechanical solution includes pre-fitted 1/2-20 inch wheel studs, 60-degree cone nuts, versatile grease caps, and an extensive spindle hardware kit to prolong spindle life and maximize towing stability.
