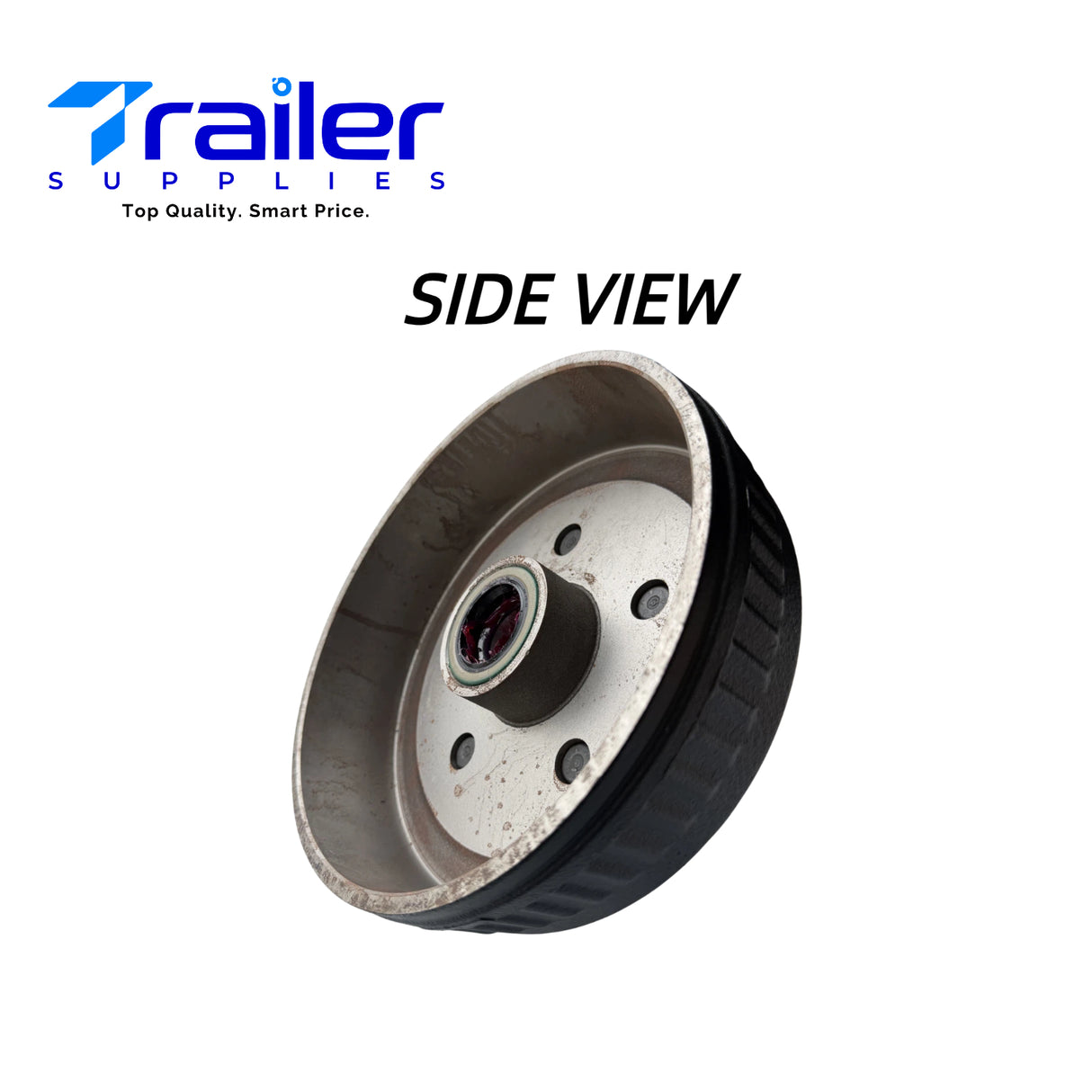

DEXTER Pre-Greased Trailer Hub and Drum Assembly Kit - 5 on 5.5" Bolt Pattern for 3.5K Axles,#84 Spindle, 1/2" Studs, 1.719" Seal(Model: K08-249-2G)
DEXTER Pre-Greased Trailer Hub and Drum Assembly Kit - 5 on 5.5" Bolt Pattern for 3.5K Axles,#84 Spindle, 1/2" Studs, 1.719" Seal(Model: K08-249-2G) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
To ensure optimal performance and extend the service life of your new trailer components, please follow these care guidelines after purchase:
- Before installation, check all parts for shipping damage or missing components. Do not install damaged parts.
- Always use correct tools and torque settings. Improper installation can lead to premature wear or failure.
- For bearings, suspensions, and brake components, apply high-quality trailer grease before first use if not pre-greased.
- Some parts (like brake assemblies) require a short break-in period to achieve full performance. Follow manufacturer instructions for best results.
- Recheck fasteners, grease levels, and moving components after 100 miles of towing, then at regular intervals.
- After exposure to water, road salt, or mud, clean and dry parts thoroughly. Apply anti-rust treatment if needed.
- If storing unused parts, keep them in a dry, sealed container away from moisture and direct sunlight.
Delivery and Shipping
Delivery and Shipping
Handling Time: Orders ship out within 1 business day after payment is received.
Shipping Methods: We use trusted carriers like UPS, FedEx, or USPS based on package size and destination.
Delivery Time: Estimated delivery within 2–6 business days (U.S. domestic orders).
Tracking: A tracking number will be provided once your order is dispatched.
DEXTER Pre-Greased Trailer Hub and Drum Assembly Kit - 5 on 5.5&quo...
Specifications
Technical Dimensions
-
Application: 3,500 lb trailer axles
-
Spindle Type: #84 spindles
-
Drum dimensions: 10" diameter x 2-1/4" wide
-
Bolt pattern: 5 on 5-1/2"
-
Wheel bolt diameter: 1/2"
-
Weight capacity: 1,750 lbs
-
Grease cap flange diameter: 1.988"
Build & Functions
-
Works with: 10" brake assembly
-
Compatible brake types: Electric and hydraulic drum brakes
-
Inner bearing: L68149 (1.378" inner diameter)
-
Outer bearing: L44649 (1.063" inner diameter)
-
Inner race: L68111
-
Outer race: L44610
-
Grease seal (included): 58846
- Inner diameter: 1.719"
- Outer diameter: 2.565"
Part Identification
-
BRAND: DEXTER
-
MANUFACTURE PART NUMBER: K08-249-2G

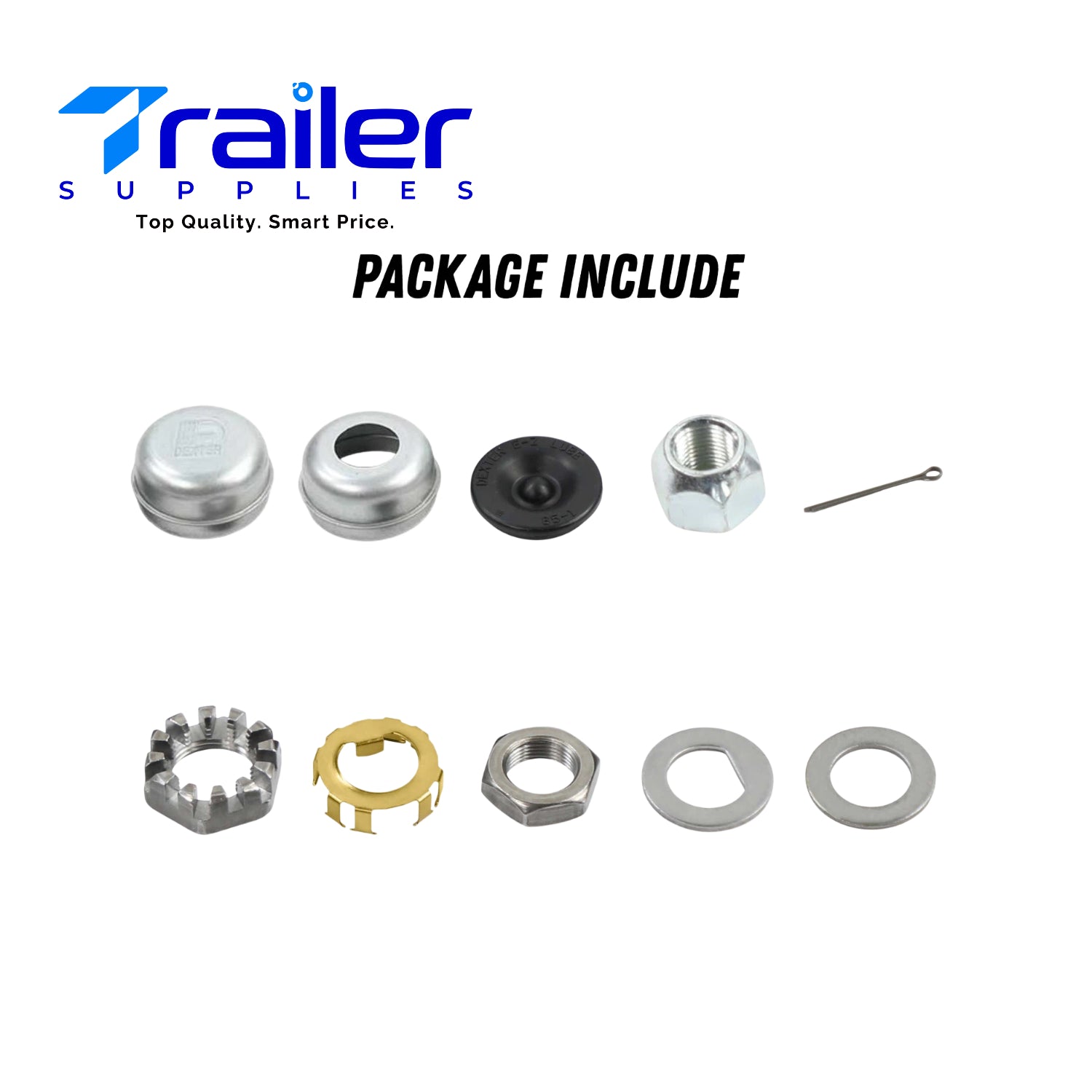

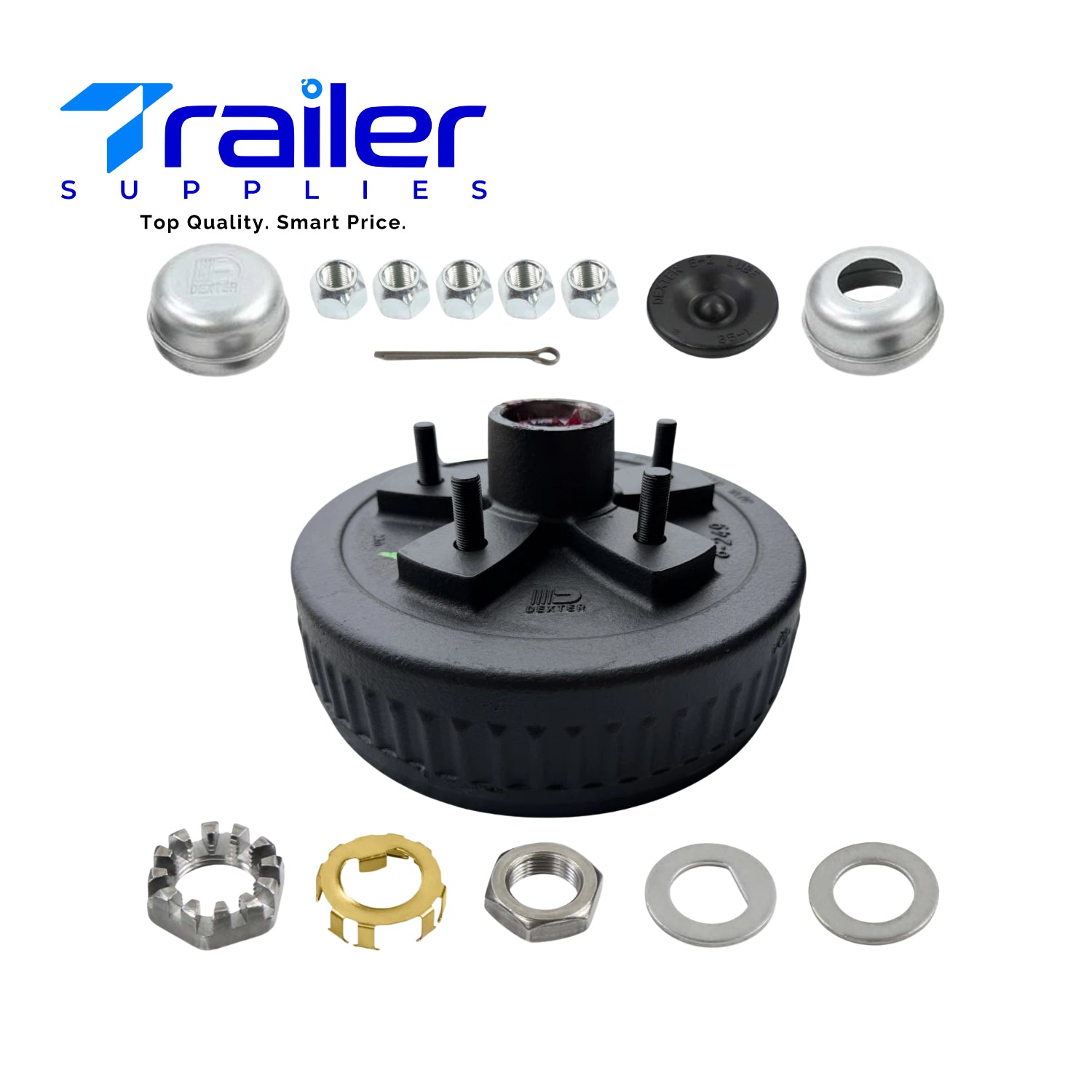

What's Included
-

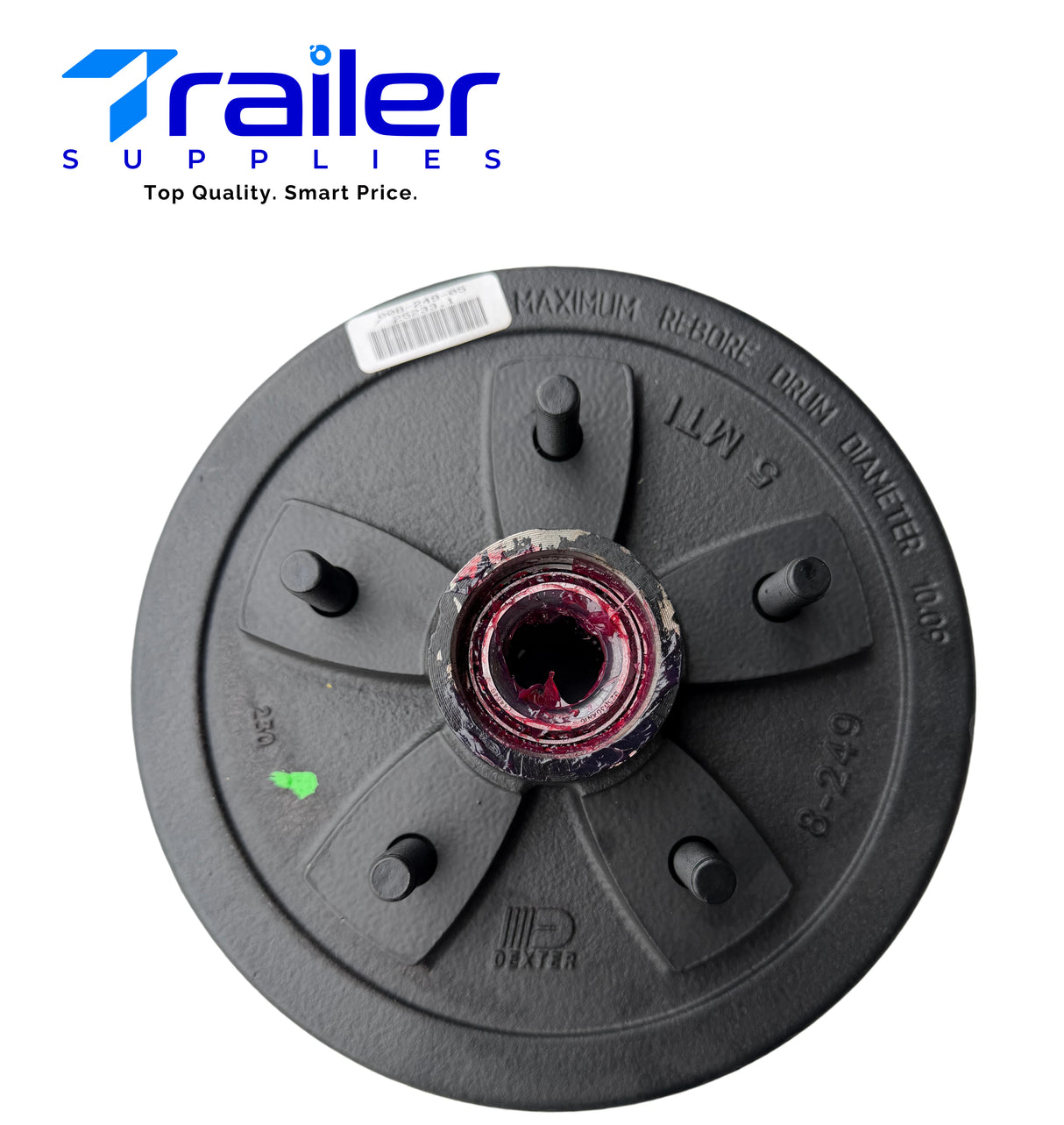

1 x Hub & Drum, 3.5K, Cupped & Studded (008-249-05)
-
1 x Grease Cap (021-003-00)
-
1 x Grease Cap (021-041-01)
-
1 x Bearing Cone L44649 (031-031-02)
-
1 x Bearing Cone L68149 ( 031-033-02)
-
1 x Rubber Plug (085-001-00)
-
1 x Washer, "D" (005-023-00)
-
1 x Washer (005-027-00)
-
1 x Seal, Grease 1.72" (010-019-00)
-
5 x Nut, Cone 60-deg (006-080-00)
-
1 x Nut, Slotted (006-176-00)
-
1 x Nut, Retainer (006-190-00)
-
1 x Nut, Hex (006-191-00)
-
1 x Cotter Pin (019-002-00)
Renew your trailer's running gear and bypass the mess of manual grease packing with this premium shop-grade pre-greased trailer hub and drum assembly kit. Engineered to provide an all-in-one, time-saving overhaul for standard 3,500 lbs trailer braking axles, this package comes completely pre-packed with high-quality automotive lubricant. It is designed specifically for towing setups configured around a standard #84 spindle with a 5 on 5-1/2 inch wheel bolt pattern. The precision-cast drum cavity features an L68149 inner bearing cone and an L44649 outer bearing cone pre-installed to create a smooth, high-speed friction reduction framework. An integrated 1.719-inch double-lip grease seal provides robust lubricant retention while actively blocking external moisture and highway grime from infiltrating the braking mechanics. Tailored for direct compatibility with standard electric and hydraulic drum brakes, this mechanical solution includes pre-fitted 1/2-20 inch wheel studs, standard cone nuts, dual-purpose grease caps, and an extensive spindle hardware kit to prolong component life and deliver smooth towing across thousands of miles.
