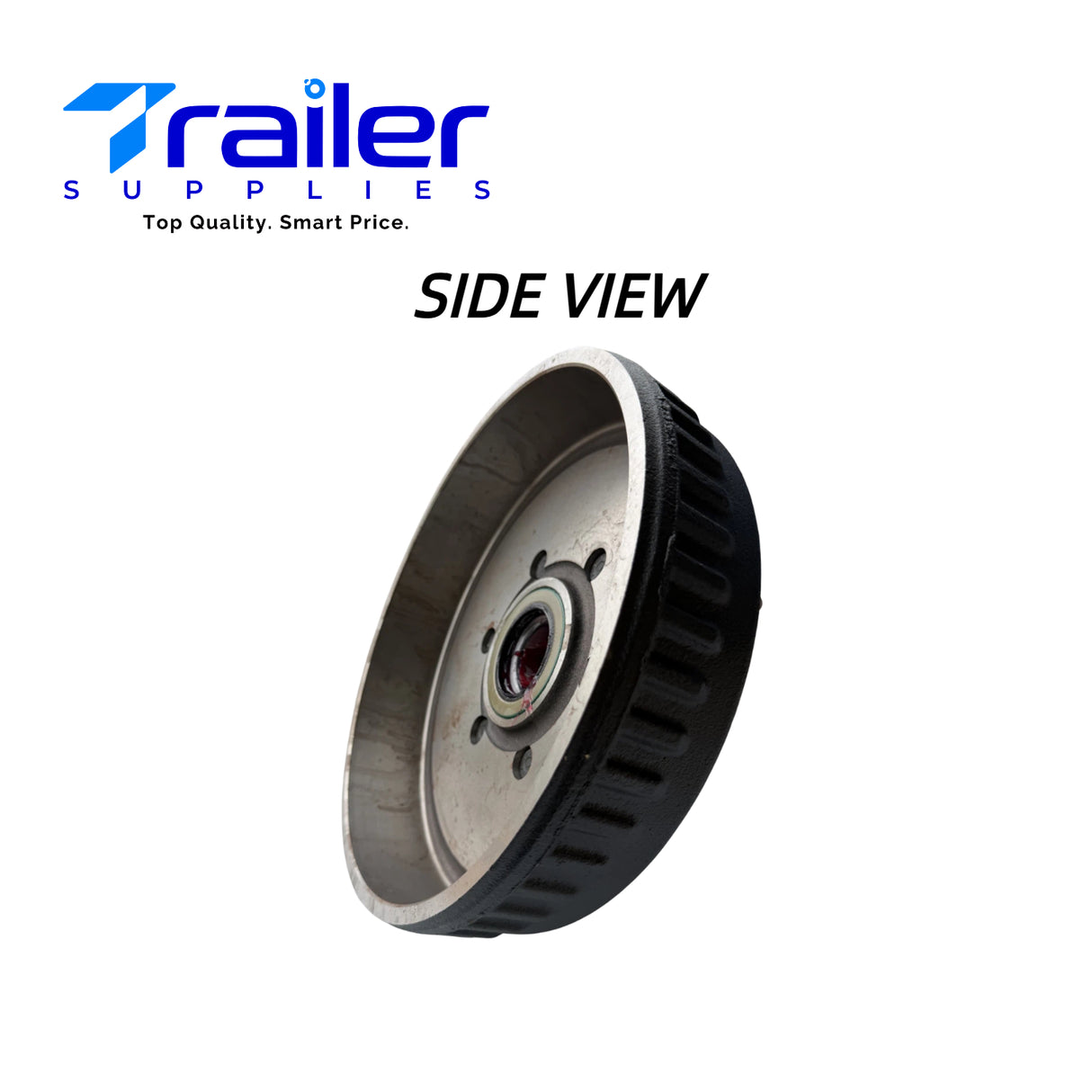

DEXTER Pre-Greased Trailer Hub and Drum Assembly Kit - 6 on 5.5" Bolt Pattern for 6K Axles (Model: K08-201-2G)

Specifications

Technical Dimensions

• Application: 6,000 lb trailer axles

• Spindle Type: #42 spindels

• Drum dimensions: 12" diameter x 2" wide

• Bolt pattern: 6 on 5-1/2"

• Wheel bolt diameter: 1/2"

• Weight capacity: 3,000 lbs

Build & Functions

• Bearings (included):

  • Inner bearing: 25580 (1.75" inner diameter)

  • Outer bearing: 15123 (1.25" inner diameter)

• Races (included):

  • Inner race: 25520

  • Outer race: 15245

• Grease seal (included): RG06-070

  • Inner diameter: 2.25"

  • Outer diameter: 3.376"

Part Identification

• BRAND: DEXTER

• MANUFACTURE PART NUMBER: K08-201-2G

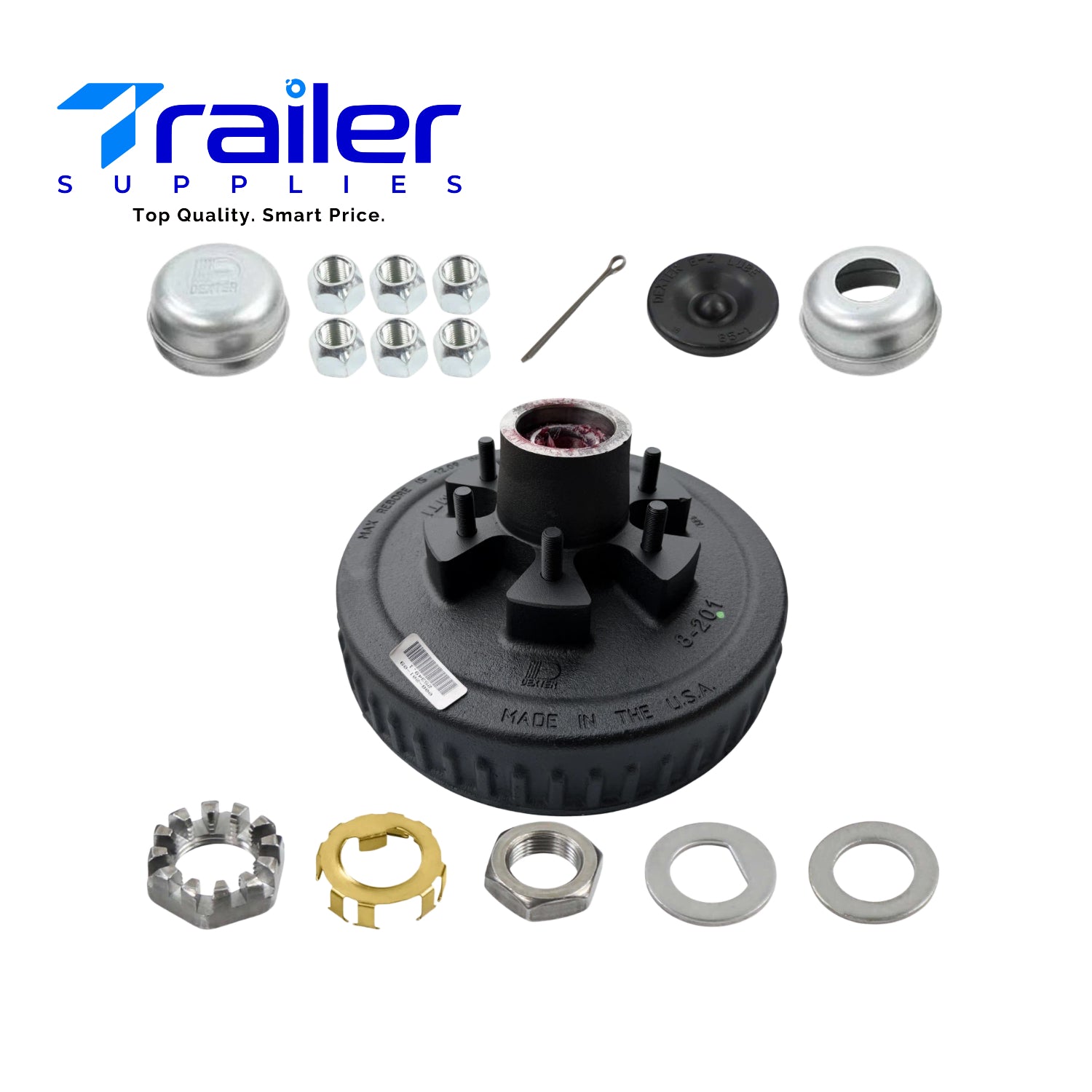

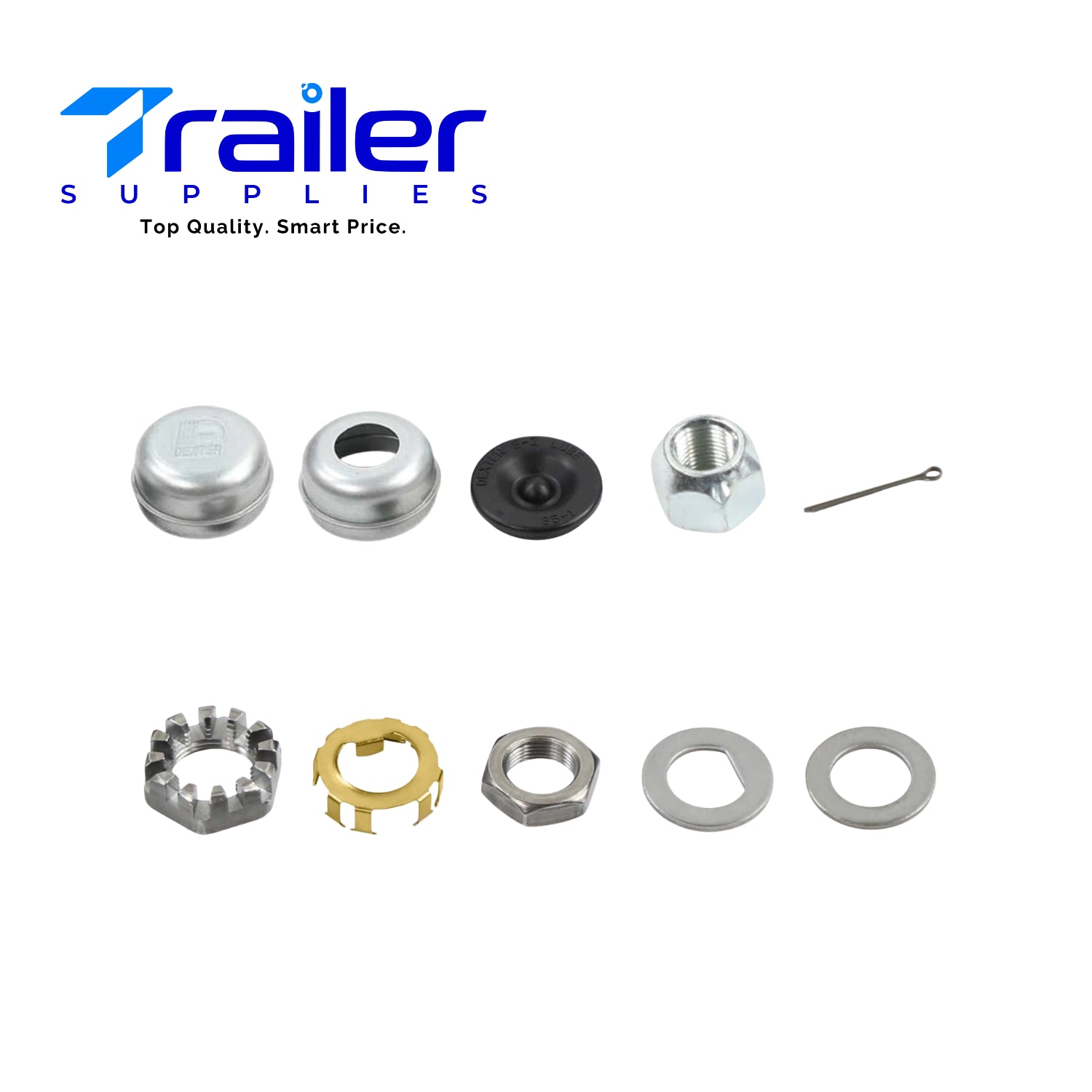

What's Included

• 1 x Hub & Drum, 6K, with 15245 Outer Cup (008-201-09)

• 1 x Bearing Cone 25580 (031-030-02)

• 1 x Bearing Cone 15123 (031-029-02)

• 1 x Seal, Grease 2.25" (010-036-00)

• 6 x Nut, Cone 60-deg (006-080-00)

• 1 x Grease Cap (021-001-00)

• 1 x Grease Cap (021-042-01)

• 1 x Rubber Plug (085-001-00)

• 1 x Nut, Retainer (006-190-00)

• 1 x Nut, Hex (006-191-00)

• 1 x Nut, Slotted (006-176-00)

• 1 x Washer, "D" (005-057-00)

• 1 x Washer (005-223-00)

• 1 x Cotter Pin (019-002-00)

Upgrade your trailer's running gear and bypass the mess of manual grease packing with this premium shop-grade pre-greased trailer hub and drum assembly kit. Formulated to provide an all-in-one, time-saving overhaul for heavy-duty 6,000 lbs trailer braking axles, this package comes completely pre-packed with premium automotive grease. It is designed specifically for towing setups built around a 6 on 5.5-inch wheel bolt circle. The precision-cast drum cavity features a 25580 inner bearing cone and a 15123 outer bearing cone pre-installed to create a reliable, high-speed friction reduction framework. An integrated 2.250-inch double-lip grease seal secures excellent lubricant retention while actively preventing highway moisture, salt, and grime from entering the braking assembly. Engineered for direct compatibility with standard trailer configurations, this maintenance package includes pre-fitted 1/2-20 inch wheel studs, standard cone nuts, versatile grease caps, and a comprehensive spindle hardware kit to prolong spindle life and deliver smooth towing across thousands of miles.
